On the formation of trappable antihydrogen

Recent years have seen major experimental advances in the production and trapping of antihydrogen, $\bar{{\rm{H}}}$ , the positron (e⁺)−antiproton ($\bar{p}$) bound state (see e.g., the reviews [1–4]), which have facilitated the first determinations of some of its properties [5–9]. Indeed, such measurements were only feasible due to the capability to hold ground state $\bar{{\rm{H}}}$ in a magnetic minimum neutral atom trap for periods of many minutes [10–12] to allow interaction with applied electric fields, or microwave or laser radiation. These experiments were typically performed with between 1 and 10 $\bar{{\rm{H}}}$ atoms in the trap.

The depth of a magnetic trap for ground state $\bar{{\rm{H}}}$ is around 0.7 K per Tesla of magnetic field change. In the ALPHA experiment, for instance, this amounts to around 0.5 K [13], and it is unlikely, given the field and space constraints on such apparatus, that traps significantly deeper than this will be available soon. As such, attention has focussed on maximising the trapped antihydrogen yield by preparing cold, dense clouds of positrons and antiprotons, and devising means of mixing them to form $\bar{{\rm{H}}}$ whilst maintaining their low temperature. Techniques such as evaporative [14] and adiabatic [15] cooling have been developed, whilst compression techniques (see, e.g., [16, 17]) have allowed the density and radial extent of the clouds to be carefully manipulated. Whilst this has led to marked improvements in $\bar{{\rm{H}}}$ trapping efficiencies (here, defined as the number of $\bar{{\rm{H}}}$ trapped per injected $\bar{p}$), from about 5 × 10⁻⁶ in the earliest work [10] to over 10⁻⁴ in a recent study [18], it is clear that many measurements will benefit markedly from increases in the yield of trapped $\bar{{\rm{H}}}$.

In most of the $\bar{{\rm{H}}}$ experiments performed to date the positron density (n_e) and temperature (T) conditions are such that formation of the anti-atom is dominated by the three-body collision reaction,

$$\begin{eqnarray}&&{e}^{+}+{e}^{+}+\bar{p}\to \bar{{\rm{H}}}+{e}^{+},\end{eqnarray} \tag{ 1 }$$

(see, e.g., [1] for a discussion). Theoretical and computational studies of this process have, as reviewed by Robicheaux [19], been undertaken for some time and have elucidated how some of the underlying features of this reaction (such as the production of weakly bound states, and the sensitivity to the positron plasma temperature) affect the experimental observations. In previous work [20, 21], we have contributed to this endeavour and have found, in particular, that the $\bar{{\rm{H}}}$ that is observed experimentally is the result of a cycle of formation and break-up (i.e., the reverse of reaction (1)) processes which also involve radial transport of the $\bar{p}{\rm{s}}$ when they are bound to a positron.

Here we extend that work to consider the properties of the formed $\bar{{\rm{H}}}$, and in particular those that govern whether the anti-atom can be held in a shallow neutral atom trap. The remainder of the article is organised as follows: in section 2 we give a description of our calculational methods, and the criteria we apply to judge whether the $\bar{{\rm{H}}}$ is potentially trappable. Our main results and discussion are given in section 3, with concluding remarks in section 4.

Details of our simulation method have been published previously [20, 21], and as such we concentrate mainly on aspects that inform the discussion herein. Classical trajectories of $\bar{p}{\rm{s}}$ and e⁺s were calculated using the full equations of motion in a combination of magnetic (axial 1 Tesla) and electric (self charge of the positron plasma) fields. This treatment does not include the magnetic fields from the atom trap which are close to zero at the position where antihydrogen is formed in an experiment, and vary little across the physical extent of the positron plasma [20]. The $\bar{p}{\rm{s}}$ were initialised from a thermal distribution, with the same temperature as the e⁺ plasma, with the latter modelled as an infinitely long cylinder with a radius of 1 mm. Temperature effects on n_e were neglected as they are very small over the range covered here, and as a result the density was modelled as constant out to 1 mm, whereupon it discontinuously dropped to zero. The electric field, E, inside the plasma is given by

$$\begin{eqnarray}&&{\bf{E}}=\displaystyle \frac{{n}_{e}e}{2{\epsilon }_{0}}{\boldsymbol{\rho }}=E\rho \hat{{\boldsymbol{\rho }}},\end{eqnarray} \tag{ 2 }$$

where ${\boldsymbol{\rho }}=\rho \hat{{\boldsymbol{\rho }}}$ is the radial coordinate with the origin at the trap axis, and e and ₀ have their usual meanings. This field, in combination with the magnetic field, B, perpendicular to it and along the trap axis, gives rise to a rotation of both charged particle species around that axis, with the speed of rotation given by

$$\begin{eqnarray}&&{v}_{{\rm{D}}}=\displaystyle \frac{E}{B}=\displaystyle \frac{{n}_{e}e\rho }{2{\epsilon }_{0}B}.\end{eqnarray} \tag{ 3 }$$

When the temperature of the charged particles is cited herein, it is the temperature in this rotating frame, and since v_D increases with both n_e and the radial position in the trap, it may be expected that the probability of $\bar{{\rm{H}}}$ trapping will be reduced with increases in either parameter.

There are two main reasons for the use of the simplified description of the plasma outlined above. The first is due to computational constraints, which necessitates that the number of parameters be limited. More significantly, though, is that we hope to elucidate some of the general features of $\bar{{\rm{H}}}$ formation, whereas a more detailed description would involve quantities such as plasma shapes, and trapping fields and configurations, that can vary considerably from experiment to experiment, and also over time within a given experiment. We believe that our simulations capture the essential generic features of $\bar{{\rm{H}}}$ formation in the ALPHA [10–12], ATRAP [22] and ASACUSA [23, 24] experiments (though the latter do not seek to trap the anti-atom).

Since the e⁺ plasma is modelled as an infinitely long cylinder, the effect of the arrested $\bar{{\rm{H}}}$ formation due to repeated cycles of $\bar{p}{\rm{s}}$ leaving and re-entering the plasma [25] is not included. This is justified since the low energy $\bar{p}{\rm{s}}$ follow the magnetic field lines and re-enter the plasma in the same state as they left it. Furthermore, any $\bar{{\rm{H}}}$ leaving the plasma axially is also missed in this approximation. In [20] it was found that, when radial $\bar{p}$ drift due to $\bar{{\rm{H}}}$ formation was accounted for, the $\bar{p}{\rm{s}}$ escaped the plasma radially within ∼10 ms at relevant values of n_e and T, though before this occurs they have typically undergone many cycles of $\bar{{\rm{H}}}$ formation and subsequent ionisation. Since $\bar{{\rm{H}}}$ formation must occur within the e⁺ plasma, the relevant measure to estimate the ratio of radially to axially escaping $\bar{{\rm{H}}}$, is the time between the $\bar{{\rm{H}}}$ formation event in the last of these cycles, and the time when this $\bar{{\rm{H}}}$ leaves the plasma. We have been able to extract these from our simulations, and found that the typical time scale (at T = 10 K) varies from ∼1 μs at the highest density used in our simulations (n_e = 10¹⁵ m⁻³) and up to ∼5 μs at our lowest density (n_e = 10¹³ m⁻³). During 1 μs a 10 K $\bar{p}$ will on average travel ∼0.2 mm axially. Since typical positron plasmas have lengths ∼cm, this confirms that most stable $\bar{{\rm{H}}}$ should escape radially. This has also been observed experimentally (see the axial distributions of annihilation events in [26, 27]). Furthermore, any unstable $\bar{{\rm{H}}}$ which leaves a finite length plasma axially and is field ionised results in a $\bar{p}$ which either follows a magnetic field line back to the plasma, or becomes trapped in the side wells [28], in which case it is lost for the purposes of $\bar{{\rm{H}}}$ formation.

Whilst previous work focussed on the radial transport of $\bar{p}{\rm{s}}$ [20], here the state of the $\bar{{\rm{H}}}{\rm{s}}$ leaving the plasma radially is examined. Our goal is to estimate the number of $\bar{{\rm{H}}}$ with properties which may allow them to be magnetically trapped, per $\bar{p}$ entering the plasma. It is therefore vital to be able to separate truly bound $\bar{{\rm{H}}}$ states from situations where a e⁺ just happened to be close to a $\bar{p}$ at the moment the latter crossed the outer limit of the plasma. Due to the presence of the external fields, the binding energy is an ill-defined property for such loosely bound objects. Instead, an operational definition of what constitutes an $\bar{{\rm{H}}}$ is used: if, in the absence of further collisions with positrons, the $\bar{p}$ and e⁺ remain together for a further 'wait time' of 1 μs, we count this as an $\bar{{\rm{H}}}$ event. During this period the 1 T axial magnetic field is still present, but the radial electric field is changed to be ∝ρ⁻¹, as appropriate outside a cylindrical charged plasma. Further, in order to sift the $\bar{{\rm{H}}}{\rm{s}}$ which are bound strongly enough to survive the fields in the trap, an axial 10 V cm⁻¹ electric field is applied (unless otherwise specified) during the wait time. We do not include the actual electric field from any particular configuration of trap electrodes, as we do not follow the $\bar{{\rm{H}}}$ trajectories outside the plasma. This field, chosen to be parallel to B, is typical of those found in the charged particle traps used in $\bar{{\rm{H}}}$ experimentation. A simple estimate (see, e.g., [29]) reveals that $\bar{{\rm{H}}}$ states with binding energies (in units of kelvin) around $9\sqrt{E}$, with E in V cm⁻¹, will be field ionised, which corresponds to states bound by up to ∼28 K. Below, we will examine how this criterion affects our final result.

We refer to the fraction of $\bar{p}{\rm{s}}$ resulting in $\bar{{\rm{H}}}$ which survives this treatment as the $\bar{{\rm{H}}}$-fraction, ${f}_{\bar{{\rm{H}}}}$ . Radiative de-excitation processes which may contribute to the formation of stable $\bar{{\rm{H}}}$, are not included, as these are not important during the first stages of $\bar{{\rm{H}}}$ formation [30, 31].

Amongst the identified stable $\bar{{\rm{H}}}{\rm{s}}$, further cuts are applied to determine the number in a state suitable for magnetic trapping. Since we do not consider the radiative cascade of the $\bar{{\rm{H}}}$ after leaving the plasma, its state on exit is examined to determine whether it can be trapped. First the direction of the magnetic moment is considered. An $\bar{{\rm{H}}}$ atom can only be trapped if its potential energy, E_p (the energy of the atom-magnetic field interaction), increases with magnetic field strength, i.e., it is in a low-field seeking state. In the approximation of an infinitely heavy antiproton, so that the coupling to the centre-of-mass motion can be ignored, the variation of E_p with magnetic field for a particle of mass m_e is given by [32] (with the brackets signifying time averages),

$$\begin{eqnarray}&&\displaystyle \frac{\partial {E}_{{\rm{p}}}}{\partial B}=-\displaystyle \frac{e}{2{m}_{e}}\hat{{\bf{B}}}\cdot {\bf{L}}+\displaystyle \frac{{e}^{2}B}{4{m}_{e}}\langle {(\hat{{\bf{B}}}\times {\bf{r}})}^{2}\rangle \end{eqnarray} \tag{ 4 }$$

$$\begin{eqnarray}&&=-\displaystyle \frac{e}{2}\langle \hat{{\bf{B}}}\cdot ({\bf{r}}\times {\bf{v}})\rangle .\end{eqnarray} \tag{ 5 }$$

Here r is the position of the e⁺, relative to the $\bar{p}$ , v is the e⁺ velocity in the frame of the atom and L is the canonical angular momentum, which is conserved along the magnetic field in the limit of infinite $\bar{p}$ mass (though it is only approximately conserved when couplings between the centre-of-mass and internal motions are included). If $\tfrac{\partial {E}_{{\rm{p}}}}{\partial B}\gt 0$, then the $\bar{{\rm{H}}}$ is a low-field seeker which can be trapped magnetically. The second term in (4) is not conserved, but will instead be reduced as r lowers during the cascade to more deeply bound states. Therefore, the first condition for an $\bar{{\rm{H}}}$ to be trappable is that the first term in (4) is required to be positive, i.e. $\hat{{\bf{B}}}\cdot {\bf{L}}\lt 0$. As was pointed out by Robicheaux [32] the direction of L is not random, and the cyclotron rotation of the positrons will predominantly select initial $\bar{{\rm{H}}}$ states with $\hat{{\bf{B}}}\cdot {\bf{L}}\gt 0$: i.e., the wrong sign for the purpose of trapping. Thus, this condition reduces the number of $\bar{{\rm{H}}}{\rm{s}}$ available for trapping by more than a factor of two.

The final condition for trapping is the requirement that the kinetic energy of the $\bar{{\rm{H}}}$ must be low enough for it to be confined by the atom trap, which for ALPHA is around 0.5 K [10]. However, since typical trapping fractions are only around 1 $\bar{{\rm{H}}}$ per 10³ to 10⁴ $\bar{p}$ (or even lower fractions at the highest temperature and lowest densities in our simulations) this condition would require the running of very many trajectories to acquire useful statistics. As a compromise between computational time and statistical uncertainty we have run about 20 000 $\bar{p}$ trajectories per parameter setting. As a result the 0.5 K equivalent energy criterion was loosened, to require that the kinetic energy of the $\bar{{\rm{H}}}$ was less than 2 K. For a thermal distribution with a temperature in the range 10–30 K, 13% of the anti-atoms with kinetic energy <2 K will satisfy <0.5 K.

To further improve the computational speed, we froze the internal states of $\bar{{\rm{H}}}{\rm{s}}$ with binding energies exceeding 300 K, and only followed their ballistic trajectory until they left the plasma. In addition we used a softening of the Coulomb potential, i.e.,

$$\begin{eqnarray}&&V(r)=-\displaystyle \frac{{e}^{2}}{4\pi {\epsilon }_{0}}\displaystyle \frac{1}{\sqrt{{r}^{2}+{r}_{0}^{2}}},\end{eqnarray} \tag{ 6 }$$

where r₀ is a constant that removes the singularity as $r\to 0$. After testing, we determined that our results were stable using r₀ = 2 × 10⁻⁸ m.

The $\bar{{\rm{H}}}{\rm{s}}$ which satisfy the conditions of stability, magnetic moment and kinetic energy listed above constitute our definition of trappable $\bar{{\rm{H}}}$, as a fraction of the injected $\bar{p}{\rm{s}}$, f_trap.

All of the simulations presented are for an axial magnetic field of 1 T. Three different temperatures of the positron plasma, 10, 15 and 30 K have been investigated for a number of plasma densities between n_e = 10¹³ m⁻³ and n_e = 10¹⁵ m⁻³. For most of our simulations the $\bar{p}$ trajectories were initialised on the axis of the trap, defined as ρ_start = 0.

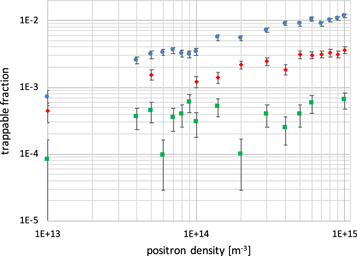

The principal results of our investigation are summarised in figure 1 which shows the trappable fraction, f_trap, across the different parameter ranges considered. As expected, lower positron temperatures strongly favour $\bar{{\rm{H}}}$ trapping. However, the dependence upon n_e is unexpected since increases in the parameter do not show a reduction of f_trap. As argued in section 2, since v_D increases with density, one would expect the kinetic energy in the stationary frame to increase proportionally, thereby reducing the probability of trapping. A partial reason for the absence of this reduction is that the $\bar{p}{\rm{s}}$ were injected on the axis of the trap, i.e. at ρ_start = 0. Here, if stable $\bar{{\rm{H}}}$ is formed before the $\bar{p}$ has drifted away from its initial radius, the kinetic energy contribution from v_D will vanish.

Zoom In Zoom Out Reset image size

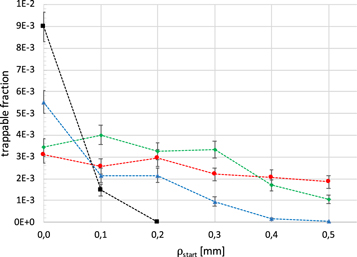

Accordingly, we have examined f_trap as a function of injection radius, and the results for T = 10 K are shown in figure 2. Data for the higher temperatures show similar features, but with poorer statistics. The results show that at low n_e, f_trap is largely independent of ρ_start, whilst at high densities trapping is drastically reduced when antiprotons are injected away from the axis. Thus, the form of figure 1, if the effect of ρ_start > 0 is included, will depend on how close to the axis the $\bar{p}{\rm{s}}$ are injected in any particular experiment. We can estimate at which density effects from ρ_start > 0 become important by assuming that all $\bar{{\rm{H}}}$ form at ρ_start, and comparing v_D to the thermal velocity (in three dimensions) as,

$$\begin{eqnarray}&&{v}_{{\rm{D}}}\gtrsim {v}_{\mathrm{th}}\,\Rightarrow \,\displaystyle \frac{{n}_{e}}{{10}^{13}\,{{\rm{m}}}^{-3}}\gtrsim 5\sqrt{\displaystyle \frac{T}{10\,{\rm{K}}}}\displaystyle \frac{1\,\mathrm{mm}}{{\rho }_{\mathrm{start}}}.\end{eqnarray} \tag{ 7 }$$

This estimate agrees quite well with the data in figure 2. Thus, we conclude that, in a real experiment, f_trap will be reduced compared to the results shown in figure 1 for n_e ≳ 10¹⁴ m⁻³, and that the size of this effect will depend on the particular conditions and can be estimated using the information given in figure 2.

Zoom In Zoom Out Reset image size

We have also investigated how sensitive our results for f_trap are to the criteria we imposed when defining what constitutes a bound $\bar{{\rm{H}}}$. That is, we varied the strength of the axial electric field applied during the 1 μs wait period from 1 to 15 V cm⁻¹. The results are shown in figure 3. We conclude that, within reasonable limits, our choice of electric field does not affect our results beyond the statistical fluctuations. However, a more detailed analysis revealed that at low densities ${f}_{\bar{{\rm{H}}}}$ is influenced by this choice, though this effect does not carry over into f_trap. Our interpretation is that those $\bar{{\rm{H}}}$ which have magnetic moments pointing in the direction which allows trapping, have undergone more or stronger collisions, which has also increased their binding energy beyond the average.

Zoom In Zoom Out Reset image size

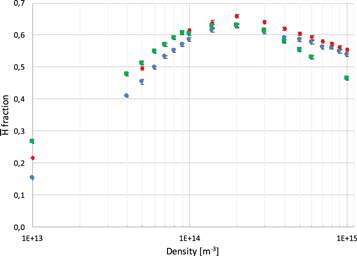

We now take a closer look at how the three criteria for f_trap, as defined in section 2, combine to create the overall results shown in figure 1. First, figure 4 shows ${f}_{\bar{{\rm{H}}}}$ , i.e., the fraction of $\bar{p}{\rm{s}}$ forming stable $\bar{{\rm{H}}}$. These data have several interesting features. We do not find a strong dependence on temperature. At densities below ∼2 × 10¹⁴ m⁻³ ${f}_{\bar{{\rm{H}}}}$  steadily increases with n_e. This is followed by a maximum, after which ${f}_{\bar{{\rm{H}}}}$  drops for all temperatures. Our interpretation is that the form of these curves is a result of the binding energy of the nascent $\bar{{\rm{H}}}$. Our procedure for selecting stable $\bar{{\rm{H}}}$ will remove those with a binding energy too low to survive the electric fields in the trap. The binding energy that can be attained by an $\bar{{\rm{H}}}$ before it leaves the plasma depends on the number of collisions with positrons it has undergone, and as result it is expected to increase with plasma density. The dependence on temperature is more complicated because a higher temperature will both lower the number of collisions (since the $\bar{p}{\rm{s}}$ form $\bar{{\rm{H}}}$ less frequently), but also increase the energy exchange per collision, thus resulting in two opposing effects. Figure 5 shows the average $\bar{{\rm{H}}}$ binding energy, after applying the stability criteria. The data confirm our qualitative expectations. In particular it is notable that at the lower densities there is little temperature dependence, and that the binding energy increases with n_e. Thus, a larger fraction of the $\bar{{\rm{H}}}$ will be stable as n_e increases, consistent with the low density region in figure 4. This effect will continue until a density has been reached where almost all the $\bar{{\rm{H}}}$ has a binding energy large enough to be stable. At this point it would be expected that the curves in figure 4 will level out.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

However, as is evident, instead of a constant ${f}_{\bar{{\rm{H}}}}$ at high n_e a temperature-dependent reduction is observed. To understand this feature we have to go beyond the average binding energy, and examine its distribution. Figure 6 compares the distribution of binding energies at densities of 10¹³, 10¹⁴ and 10¹⁵ m⁻³ at T = 10 K, revealing major differences.

Zoom In Zoom Out Reset image size

The $\bar{{\rm{H}}}$ that are initially formed via reaction (1) typically possess a small binding energy. As they collide with positrons, a few of them trickle down to deeper binding energies, while others are ionised. One would therefore expect most $\bar{{\rm{H}}}$ to have small binding energies, with a tail towards deeper binding developing with time, eventually forming a steady state [31]. This is what occurs at 10¹³m⁻³ and 10¹⁴ m⁻³, except that some of the $\bar{{\rm{H}}}$ with binding energy ≲30 K have been removed by the electric field during the wait. This is consistent with the explanation given above of the linear increase for low densities.

The distribution at 10¹⁵ m⁻³ is markedly different, with very few $\bar{{\rm{H}}}$ close to zero binding energy, and a broad maximum around 80 K. To understand this difference, it should be recalled that the distribution of binding energies is not a snapshot of all $\bar{{\rm{H}}}{\rm{s}}$ at some given time. Instead it is the distribution for those $\bar{{\rm{H}}}{\rm{s}}$ that have been radially transported across the outer radius of the plasma, independently of when or where they were initially formed. As discussed in [20], two mechanisms for radial transport need to be considered: (i) thermal diffusion of the $\bar{p}{\rm{s}}$ and (ii) radial jumps arising from antihydrogen formation. The relative importance of the two mechanisms depends on positron density and temperature, where v_D < v_th favours thermal diffusion, with the jump mechanism dominating in the opposite limit.

As can be seen from equation (7) and figure 2, at 10¹⁵ m⁻³ the drift velocity dominates over thermal motion over almost the entire plasma (except very close to the axis). As a consequence, the $\bar{{\rm{H}}}$ formation mechanism becomes important. At this density most of the stable $\bar{{\rm{H}}}{\rm{s}}$ leaving the plasma were formed close to the axis, and then, while still bound, radially transported through the plasma and across its outer radius. During this jump, the $\bar{{\rm{H}}}$ will collide with positrons, and only those which manage to attain a large binding energy will survive all the way. Any $\bar{{\rm{H}}}$ with a small binding energy is likely to ionise before it escapes the plasma, and will not contribute to the recorded distribution. Thus, the distribution obtained at 10¹⁵ m⁻³ is the result of a post-selection effect, where the radial transport mechanism selects the most deeply bound $\bar{{\rm{H}}}$ of all those formed.

The trend at high densities in figure 4 (i.e., less stable $\bar{{\rm{H}}}$ at elevated n_e) goes against the trend in figure 1 (a roughly constant number of trappable $\bar{{\rm{H}}}$ under similar conditions). To explain this difference we have examined the distribution of magnetic moments, and the results shown in figure 7 confirm the conclusion of Robicheaux [32] that $\bar{{\rm{H}}}$ is preferentially formed in high-field seeking, untrapped states (though in that work the density dependence of the effect was not investigated). However, a trend towards a more beneficial distribution with increased density is also observed which compensates for the decline in the number of $\bar{{\rm{H}}}$ formed, resulting in a roughly constant f_trap at the higher temperatures in figure 1, while at 10 K there is a slow increase all the way up to n_e = 10¹⁵ m⁻³. The reason for this effect is that, whilst the $\bar{{\rm{H}}}$ is formed in high-field seeking states, collisions with positrons (i.e., the same collisions which are necessary to stabilise the $\bar{{\rm{H}}}$) may change the direction of the magnetic moment. High density and low temperature result in more of these collisions, creating the trend in figure 7. We have confirmed this interpretation by following the time evolution of the magnetic moment of the last $\bar{{\rm{H}}}$ to be formed in a $\bar{p}$ trajectory (i.e., the $\bar{{\rm{H}}}$ that finally escaped intact from the plasma), finding that the fraction of low-field seekers does indeed increase with time, and with a rate roughly proportional to n_e.

Zoom In Zoom Out Reset image size

We have found that important aspects of $\bar{{\rm{H}}}$ formation are qualitatively different depending on positron density, with low- and high-density regions separated at n_e ∼ 2 × 10¹⁴ m⁻³. At the lower n_e the number of trappable $\bar{{\rm{H}}}$ formed per injected $\bar{p}$ increases with density, whereas in the high-density region, this fraction is largely independent of n_e at T ≳ 15 K, while it continues to grow slightly at 10 K.

The condition imposed here that the kinetic energy must be less than 2 K for $\bar{{\rm{H}}}$ to be trapped makes f_trap very sensitive to positron temperature. Moreover, at high densities f_trap is reduced if the $\bar{p}{\rm{s}}$ are injected away from the axis of the trap, while this effect is not present at low densities. The (binding energy) stability condition results in a largely temperature independent ${f}_{\bar{{\rm{H}}}}$ , increasing with density, at low densities. At high densities ${f}_{\bar{{\rm{H}}}}$ falls off again. The condition on the magnetic moment causes a reduction of f_trap considerably larger than a factor of two, however higher densities give more low-field seeking states, especially at the lower temperatures, due to the effects of positron collisions.

Finally, we make a comparison of our results with experimentally observed trapping fractions. In a recent publication by ALPHA [18], $\bar{{\rm{H}}}$ formation at T = 18 K and n_e = 6.5 × 10¹³ m⁻³ (at the beginning of the mixing with antiprotons) resulted in, ${f}_{\bar{{\rm{H}}}}\simeq 0.4$ and f_trap ≃ 10⁻⁴. For similar conditions our results give ${f}_{\bar{{\rm{H}}}}\,\simeq 0.5$ and f_trap ≃ 10⁻³, and further multiplication of f_trap by 0.13 (to account for the trap depth of 2 K in the simulations, compared to 0.5 K in the experiment) reduces this number to 1.3 × 10⁻⁴. This agreement is very good, considering the approximations involved, however we know of no experimental work where density or temperature effects are studied systematically for comparison with the trends observed here. We note that at high positron densities n_e ≳ 10¹⁴ m⁻³, if narrow width (say around 0.1 mm radius) $\bar{p}$ clouds are available, f_trap will be considerably enhanced. Given the increasing trend of f_trap as T is lowered, ongoing initiatives to produce colder positron clouds [33] are likely to prove beneficial.

The range of densities and temperatures covered in this paper should also serve to inform other experiments, though some conditions may differ. Among the parameters we have not varied is the magnetic field strength. A stronger magnetic field will reduce the velocity v_D of the antiprotons (see equation (3)), and thus counteract the radial reduction of the trapping rate in figure 2. Further, the radius of the positron plasma will also vary between different experiments. This could change the results quantitatively, but should not affect the trends we observe, as the underlying physics remains the same. Finally, it should be noted that we have assumed that the antiprotons are in thermal equilibrium with the positron plasma. In experiments, they have to be injected with some finite kinetic energy. Whether or not antihydrogen formation starts before the antiprotons thermalise will depend on the balance between the slowing rate and the three-body recombination rate. Such epithermal antihydrogen formation was discussed in [21].
